PTO Shaft for Rotary Tiller

PTO Shaft for Rotary Tiller — Reliable Torque Transfer for Soil Preparation

A rotary tiller PTO shaft — also known as a rotavator drive shaft or rotary cultivator cardan shaft — is the primary mechanical link between tractor and tillage tool. Rotary tillers demand a driveshaft that can handle sustained high-torque loads, sudden shock as blades encounter buried stones, and the repetitive telescoping action caused by the tiller’s lateral oscillation during operation.

Operating at a standard 540 RPM input speed, the shaft transmits power through a compact gear chain inside the tiller’s central gearbox, ultimately driving the horizontal rotor that spins L-shaped or C-shaped blades at approximately 200–350 RPM through the soil. The rotor inertia is enormous — which is why a shear bolt or ratchet torque limiter is standard equipment on rotary tiller PTO shafts to prevent catastrophic gearbox failures when blades meet immovable objects.

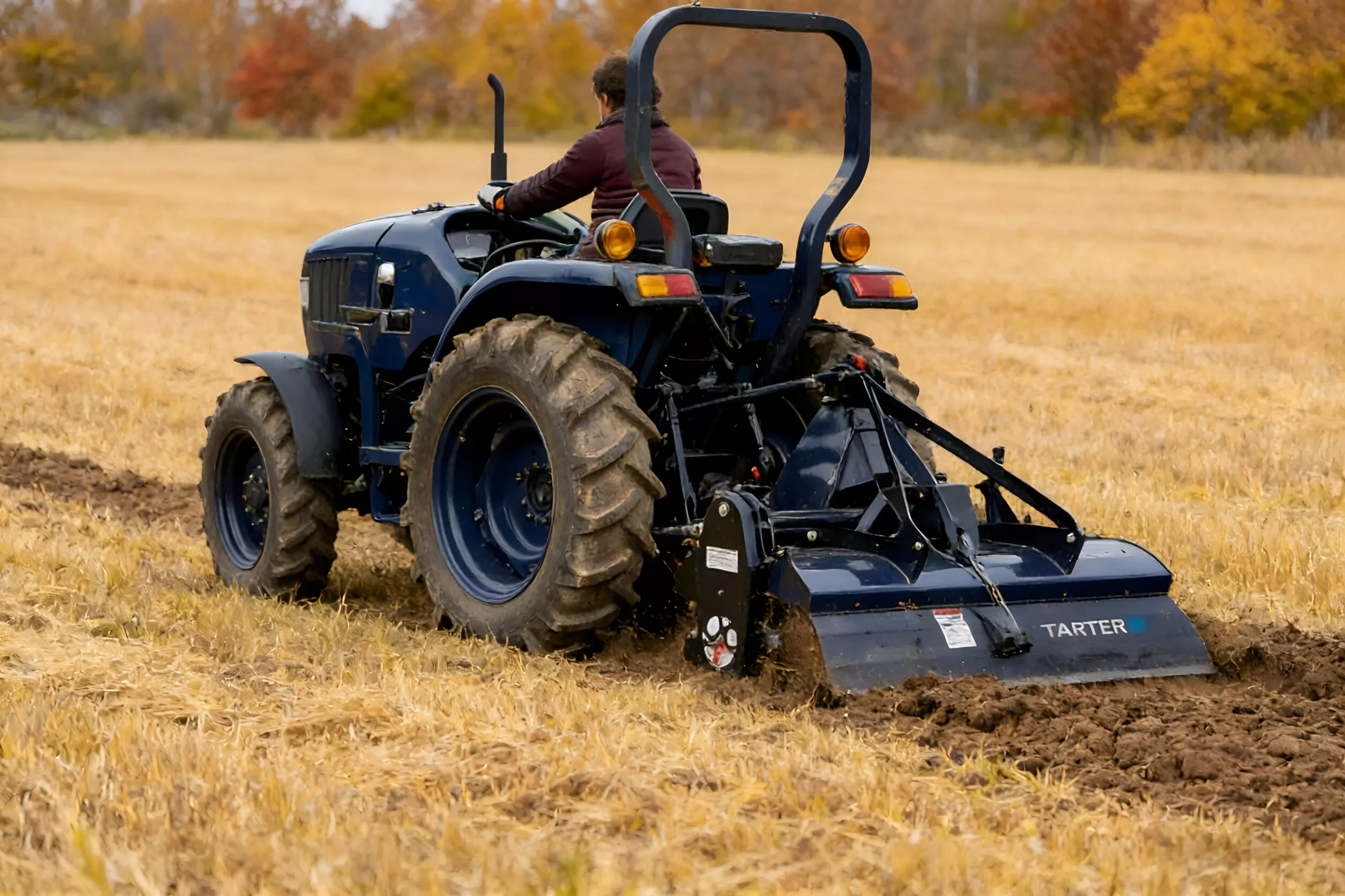

Rotary tiller PTO shaft field application

Browse our complete PTO shaft product range or reach out on our contact page for volume pricing and custom configurations.

Technical Specifications — PTO Shaft for Rotary Tiller

Parameter	Standard Value / Configuration	Customisable Range
Series / Torque Rating	Series 5 / 1,500 N·m	Series 3–8 (600–4,500 N·m)
Nominal PTO Speed	540 RPM	540 / 1000 RPM
Power Range	30–75 kW (40–100 HP)	15–150 kW
Compressed Length	740–980 mm	500–2,000 mm
Extended Length	1,100–1,550 mm	750–2,800 mm
Tube Profile	Triangular (standard)	Tri / Star / Lemon / Hexagonal
Universal Joint Type	Standard cross-joint (20°)	Cross-joint / CV (±35°) optional
Input Yoke (Tractor Side)	1-3/8″ × 6 spline quick-release	1-3/8″×6, 1-3/4″×6, 1-3/8″×21
Output Yoke (Machine Side)	1-3/8″ × 6 spline	Customisable to machine spec
Overload Protection Type	Shear bolt (std) / Ratchet optional	Shear bolt / Ratchet / Friction
Shear Bolt Rating	8.8 grade M8 × 2 bolts	M6–M12, Grade 4.6 – 10.9
Guard Type	Half-cone PE with safety chain	Half / Full cone PE or PP
Guard Compliance	EN ISO 4254-1 / AS 4024	CE / ISO compliant
Grease Nipple Spec	DIN 71412 Form A	DIN / SAE / BSP
Greasing Interval	Every 8 hours	8–50 hrs (sealed option)
Outer Tube Diameter	51.0 mm	38.0–90.0 mm
Inner Tube Diameter	44.5 mm	32.0–82.0 mm
Yoke Material	Forged 20CrMnTi	20CrMnTi / 40Cr
Surface Treatment	Zinc phosphate + oil	Zinc phosphate / Hot-dip galv / E-coat
Operating Temp Range	-25 °C to +75 °C	-40 °C to +100 °C

Working Principle & Structure of the Rotary Tiller PTO Shaft

Power flows from the tractor’s 540 RPM PTO stub through the input yoke cross-joint into the outer sliding tube, then through the inner tube and output yoke cross-joint into the rotary tiller’s main bevel gearbox input shaft. As the tractor moves and the tiller’s working depth changes, the telescoping tubes slide relative to each other — the triangular or star profile prevents rotation while allowing free axial movement.

The shear bolt protection hub sits at the machine-end yoke. It consists of a driving flange, a driven flange, and two or four hardened shear bolts that pass through both flanges. Under normal load these bolts transmit torque rigidly. When a tiller blade strikes an immovable object, torque instantly exceeds the shear bolt rating — the bolts shear cleanly, decoupling the rotor’s flywheel energy from the gearbox. Replacement takes under five minutes with a spare bolt kit (always carry a set in the tractor cab).

Rotary tiller PTO shaft cross-section with shear bolt protection

Core Advantages of Our PTO Shaft for Rotary Tiller

Heavy-Duty Series 5 Rated

Engineered for continuous 540 RPM operation in clay-heavy soils typical of irrigated cropping country — peak torque rated 50% above continuous load.

Dual Shear-Bolt Redundancy

Two-bolt shear hubs provide more consistent slip torque than single-bolt designs; optional ratchet clutch available for operators who prefer automatic re-engagement.

Triangular Profile Precision Machining

Cold-drawn triangular tube pairs lapped to ±0.05 mm — smooth telescoping under muddy field conditions where square-profile tubes can jam.

ISO 9001:2015 Manufacture

Full traceability from raw forging to finished shaft — heat treatment certs, dimensional reports, and hardness test data available on request.

Global Spline Library

Both 6-spline and 21-spline tractor-side connections stocked; confirm your tractor model and we match the correct yoke configuration.

️ Rapid Rebuild Kits

Cross-kits, bearing cups, and shear bolt sets sold individually — no need to replace the entire shaft when only one component wears.

Brand Compatibility, Spare Parts & Cross-References

Our pto shaft for rotary tiller is engineered as a direct drop-in replacement for shafts supplied as original equipment on the following brands: Maschio, Howard, Minos, Celli, Amazone, Agria, Grillo, Kubota, Yanmar, Ferrari. We maintain a live cross-reference database of over 12,000 entries to confirm fit before dispatch.

⚠️ Disclaimer: These brand names are cited for parts-matching reference only and do not imply any commercial or legal relationship.

Spare parts available separately: Cross-kits (standard & sealed) · Locking yoke collars · Friction disc sets · Shear bolt kits · Guard sets · Replacement cones · Grease nipples · Bearing cups

→ Browse all PTO shaft spare parts and accessories

Regulations, Compliance & Regional Demand

Applicable Standards: Standards: ISO 5673-1:2014, ASABE S203.12, AS 4024.3601. WHS Regulation 2017 (Cth) requires guarding on all rotating PTO shafts. AUS biosecurity requirements for timber packing excluded — all shafts shipped in steel-banded cardboard.

Key Australian Demand Regions: High-demand regions: Darling Downs QLD, Mallee VIC/SA, Hunter Valley NSW, Ord River WA, Tasmania mixed cropping.

Our products are shipped from bonded warehouse with full compliance documentation including: CE Declaration of Conformity (where applicable), ISO material certifications, dimensional inspection reports, and surface treatment test data. All products are invoiced in AUD with Australian GST where applicable.

Quick Selection Guide — PTO Shaft for Rotary Tiller

Selection Parameter	How to Determine	Guidance
Tractor PTO HP	From tractor spec	Choose shaft series rated ≥ tractor HP
Tiller working width	1.0–3.5 m	Wider = higher continuous torque demand
Soil type	Sandy / Loam / Clay / Stony	Clay/stony: heavier series + ratchet clutch
PTO speed	540 RPM	Confirm tiller gearbox input specification
Shaft length requirement	Measure hitch-to-input at work depth	Compressed length = measured gap − 60 mm
Spline type	Count tractor PTO splines	6-spline (std) or 21-spline (large tractors)

Step-by-Step Installation Guide — PTO Shaft for Rotary Tiller

[Safety first] Shut off tractor; set handbrake; disengage PTO before any driveshaft work.
[Length check] Lower tiller to working height; measure shaft gap; confirm compressed length is ≥ 50 mm more than gap.
[Tractor end] Connect tractor-end yoke to PTO stub — push inward until audible click of locking pin.
[Tiller end] Slide machine-end yoke onto tiller gearbox input; tighten locking collar to spec (usually 25–30 N·m).
[Guard chain] Route safety chain from guard to tractor hitch pin; check guard rotates freely relative to shaft.
[Initial run] Perform a dry run: engage PTO at idle, confirm smooth rotation and no guard contact.
[Break-in service] After 2 hours: re-check yoke collar torque; grease all nipples.
[Spares prep] Keep spare shear bolts in tractor cab — always use OEM-grade 8.8 M8 bolts, never higher grade.

PTO Shaft for Rotary Tiller installation reference

️ PTO Shaft Troubleshooting — Common Issues & Solutions

⚠️ Shear bolts failing repeatedly on normal load

Root Cause: Incorrect bolt grade (too soft) or misaligned shaft creating bending load

Fix: Use specified 8.8 grade M8 bolts; check shaft alignment — both yokes should be in same plane

⚠️ Shaft vibrating heavily at operating speed

Root Cause: Yoke phasing incorrect (180° out); bent inner tube

Fix: Disassemble and reassemble yokes in-phase; straighten or replace tube if bent

⚠️ Profile tubes seizing after wet work

Root Cause: Mud and grit packed into sliding profile

Fix: Clean with high-pressure water; lubricate with EP2 grease; consider sealed guard kit

⚠️ Cross-joint knocking sound

Root Cause: Worn bearing cups in cross-kit

Fix: Replace cross-kit assembly; do not run with worn bearings — rapid escalation to yoke failure

⚠️ Guard melting from heat

Root Cause: Guard strap loose — guard spinning with shaft

Fix: Stop immediately; anchor both ends of guard retaining strap firmly

Engineer’s Field Notes — Australian Case Studies

Toowoomba, QLD

Ben — vegetable production, 85 HP Fendt

“”Maschio rotary tiller, 2.5 m wide. Your Series 5 shaft with ratchet clutch replaced the OEM shaft after it was destroyed by a buried rock. No damage to gearbox — the ratchet saved it.””

Mildura, VIC

Sun Country Citrus — cover crop tillage

“”We ordered 4 shafts for our Howard rotavators. All arrived with correct 1-3/8″×6 splines, guard chains included. Very smooth on our sandy river flat soil.””

Orange, NSW

David — apple orchard floor management

“”The compressed length custom option was key — our tractor-orchard tiller gap is non-standard. Perfect fit on first install.””

Esperance, WA

Grain & sheep farm — cereal stubble incorporation

“”Ordered 2 shafts in July. Both still running 18 months later on heavy red soil with no issues. Greased every 8 hours as recommended.””

Launceston, TAS

Organic vegetable co-op — spring bed preparation

“”Fast delivery to Tassie, clear cross-reference to our Celli EF 200 tiller. Straight-through install in under 20 minutes.””

❓ Frequently Asked Questions

What RPM do I need for my rotary tiller PTO shaft?

The vast majority of rotary tillers manufactured for 40–100 HP tractors use a 540 RPM PTO speed. A small number of heavy-duty wide tillers (>3 m) use 1000 RPM. Check your tiller’s specification plate or owner’s manual. Running the wrong speed causes premature wear or overloading of the tiller’s internal gearchain.

Shear bolt versus ratchet clutch — which is better for a rotary tiller?

Shear bolts are lower cost and provide precise, repeatable slip torque but require a manual bolt replacement after each overload event. Ratchet clutches re-engage automatically but must be periodically inspected for worn pawls. For operations on stony ground where rock strikes are frequent (e.g., new land clearing), the ratchet clutch minimises downtime.

Can I extend my rotary tiller PTO shaft if it’s too short?

No — never splice or extend a PTO shaft. An improperly extended shaft can collapse or separate during operation, causing serious injury. Order the correct-length replacement shaft for your tractor-tiller combination.

How do I measure the correct PTO shaft length for my rotary tiller?

Lower the tiller to its working depth on flat ground. Measure the distance from the tractor PTO stub face to the tiller gearbox input face. Subtract 60 mm for safety clearance at full compression. This gives your target compressed length. Add your expected working range travel to confirm the extended length is sufficient.

What is the difference between a 6-spline and a 21-spline PTO?

A 6-spline (1-3/8″) connection is standard on tractors up to about 100 HP. A 21-spline (1-3/8″) connection is found on higher-HP tractors. A 20-spline (1-3/4″) is used on tractors over 100 HP. Check the number of splines on your tractor PTO stub before ordering.
