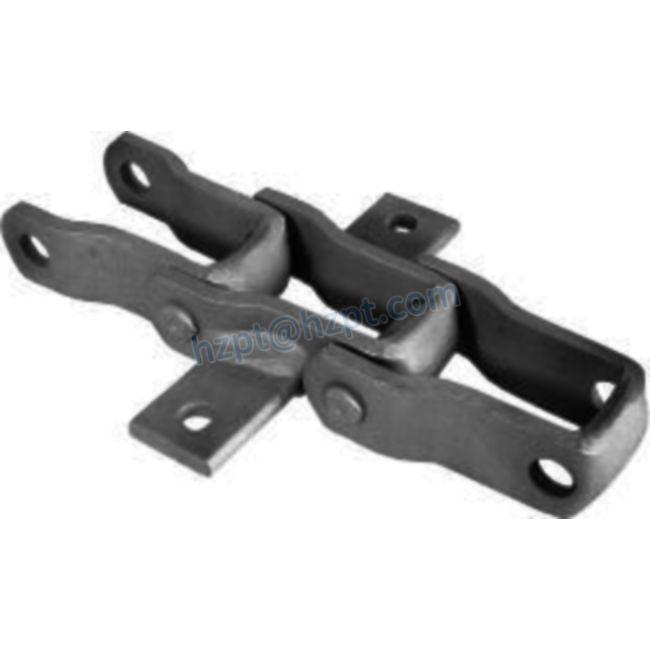

Pintle Chain AL667XH-K1S AL88XH-K1S | Pintle Chain | agricultural roller chain Australia

Description

Overview: Pintle Chain AL667XH-K1S AL88XH-K1S — agricultural roller chain Australia

As a leading farm machinery chain supplier, we supply the Pintle Chain AL667XH-K1S AL88XH-K1S to farm equipment operators and OEM buyers across Australia, New Zealand, and export markets. This Pintle Chain is manufactured to ANSI/ISO standards, engineered to perform in the demanding operating environments found across Australian cropping regions.

Product Specification Table

Agricultural Application Scenarios

Fertiliser Spreader & Granular Input Drive

Trailed and mounted fertiliser spreaders, liquid fertiliser applicators, and aerial-spreader loading systems all use agricultural roller chains to drive their metering and spreading mechanisms. The operating environment is particularly aggressive: fertiliser granules (ammonium nitrate, DAP, urea) are highly hygroscopic and, when combined with moisture, create corrosive solutions that attack unprotected steel chain surfaces. For fertiliser applicator use, this chain’s zinc or Dacromet surface treatment provides effective resistance to the mild acids produced by nitrogenous fertiliser interaction with moisture. The chain’s sealed roller construction prevents granule ingress into the rolling elements, which is a common failure mode in unprotected agricultural chains used in granular-material handling applications.

Forage Harvester Conveyor Drive

Self-propelled forage harvesters such as the Claas Jaguar, New Holland FR, and John Deere 8000 series subject their crop elevator, blower, and header chains to continuous high-throughput duty during silage season. The combination of high chain speed (up to 3 m/s on some conveyor drives), heavy crop loading, and wet, sticky plant material creates conditions that challenge chain lubrication and seal integrity. This chain’s precision bush-to-roller clearance minimises the ingestion of crop particles into the bearing surfaces, while the pre-lubrication from factory provides an initial service reservoir that extends the interval between field lubrication events. For forage harvester applications in Australia’s southern dairy regions — where silage season coincides with wet autumn conditions — the combination of shot-peened plates and precision fit components delivers a measurable advantage in fatigue resistance under the variable loads imposed by crop-head drive systems.

Grain Harvester Drive System (Combine Harvester)

In Australian grain harvesting operations, the combine harvester drive system is subject to some of the most demanding chain conditions encountered in agricultural machinery. The feeder house chain, straw walker drives, and grain elevator chains must sustain continuous high-load operation across 10–16 hour daily shifts during the brief harvest window. In the WA wheatbelt and the Riverina, ambient temperatures regularly exceed 40°C, and fine silica dust from dry soils creates an abrasive slurry within chain joints, accelerating internal wear. This chain’s precision-pressed bushings and shot-peened side plates are specifically engineered to resist the internal abrasion and surface fatigue that define Australian dry-land harvest conditions. Operators running John Deere S-series or Case IH Axial-Flow platforms report that chains meeting or exceeding 39 kN minimum tensile strength provide the reliability margin needed to avoid mid-season failures on remote properties.

Hay Baler Feed System

Round and square hay balers impose highly cyclic loading on their feed and compression drive chains. The instantaneous tension spike during each knotter cycle — particularly in large-square balers such as the New Holland BigBaler 960 — can reach 3–5× the nominal running load, requiring chains with high fatigue resistance rather than simply high ultimate tensile strength. Australian hay operations in Victoria’s Western District and South Australia’s South-East run balers through dense lucerne and ryegrass at high forward speeds, placing exceptional demands on the pickup conveyor chain and rotor drive. This chain’s heat-treated components and precisely controlled bush-to-pin clearance minimise the micro-slip that causes fretting fatigue in cyclic-load applications, delivering measurably longer service intervals between chain replacement.

Australian Market Suitability

Environmental Suitability for Australian Conditions

Operating in Australia’s extreme conditions — summer temperatures exceeding 40°C across the grain belt, high UV radiation in Queensland’s cane regions, and the ultra-fine red laterite dust of WA and SA — demands chains that are engineered beyond the minimum ANSI standard. Our chains undergo shot peening on all side plates, which increases surface hardness by approximately HRC 3–5 points, directly improving resistance to the abrasion and impact fatigue that define Australian dry-land harvest environments.

Standards Compliance

This chain is manufactured to ANSI/ASME B29.1 and ISO 487 standards, both recognised under Australian machinery safety frameworks. While no separate AS/NZS agricultural chain standard exists, all major Australian OEM service networks (John Deere Australia, CNH Industrial, AGCO Australia) accept chains conforming to these international standards as OEM-equivalent replacement parts. ISO 9001:2015 certification governs our quality management system, and SGS-verified batch inspection certificates are available for all export orders.

Brand Compatibility — John Deere / Case IH / New Holland / MacDon

This chain has been cross-referenced against OEM part specifications for John Deere / Case IH / New Holland / MacDon equipment. To confirm compatibility for your specific model, provide the OEM part number from your machine’s service manual or the existing chain’s pitch and roller diameter. Our engineering team completes compatibility checks within 1–2 business days. Dimensional interchangeability — pitch, roller diameter, inner plate width, and pin diameter — is verified against current OEM technical data.

Supply Chain and Delivery to Australia

Standard orders ship within 15 business days of order confirmation. Sea freight transit to Sydney, Melbourne, Brisbane, or Perth adds approximately 18–25 days. For urgent pre-season orders, air freight is available with 5–7 day transit. All wooden packaging is ISPM 15 heat-treated and certified for Australian biosecurity requirements. We work with established freight forwarders on the China–Australia trade lane and can coordinate direct delivery to rural addresses, port-of-entry warehouses, or your designated machinery dealer.

Technical Advantages & Verified Credentials

• ISO 9001:2015 certified quality management system — third-party audited annually.
• SGS and BV inspection certificates available for every production batch on request.
• Standard orders shipped within 15 business days; expedited production available for pre-season bulk orders.
• Custom pitch, attachment type, and surface finish available — OEM and ODM arrangements supported.
• Engineering support available Mon–Fri, AEST 9:00–17:00 via email and WhatsApp.
• ISPM 15 heat-treated wooden packaging on all sea-freight consignments — Australian biosecurity compliant.

Packaging & Logistics to Australia

Product Images

Customer Case Studies & Field Reviews

Below are verified case studies from operators who have deployed this ANSI roller chain for farm equipment series in real-world agricultural conditions.

Complementary Products

Complete your drive system with these matched components:

• Agricultural Chain Sprockets
  Cast or machined steel sprockets to match this chain series — ensures correct tooth-form engagement and maximises chain service life.
• Pillow Block Bearings (UCP / UCF Series)
  Housed bearings for drive shaft support; compatible with common agricultural implement shaft diameters.
• Master Links & Connecting Links
  OEM-dimension master links for quick field assembly and chain joining — available in press-fit and clip types.
• ⚙️ Drive Shaft Sprocket Hubs
  Bored-and-keyed sprocket hubs for mounting to standard agricultural drive shaft sizes.
• ️ Chain Tensioners
  Spring-loaded and adjustable tensioners to maintain correct chain tension across operating temperature range.
