Our Quality vs. Inferior PTO Shafts — Why It Matters

Most field failures of PTO drivelines come from a small set of root causes — thin tube walls, low-grade crosses, untested balance, brittle guards. The table below compares each common failure mode to how we engineer it out at our factory:

Working Principle & Application Position

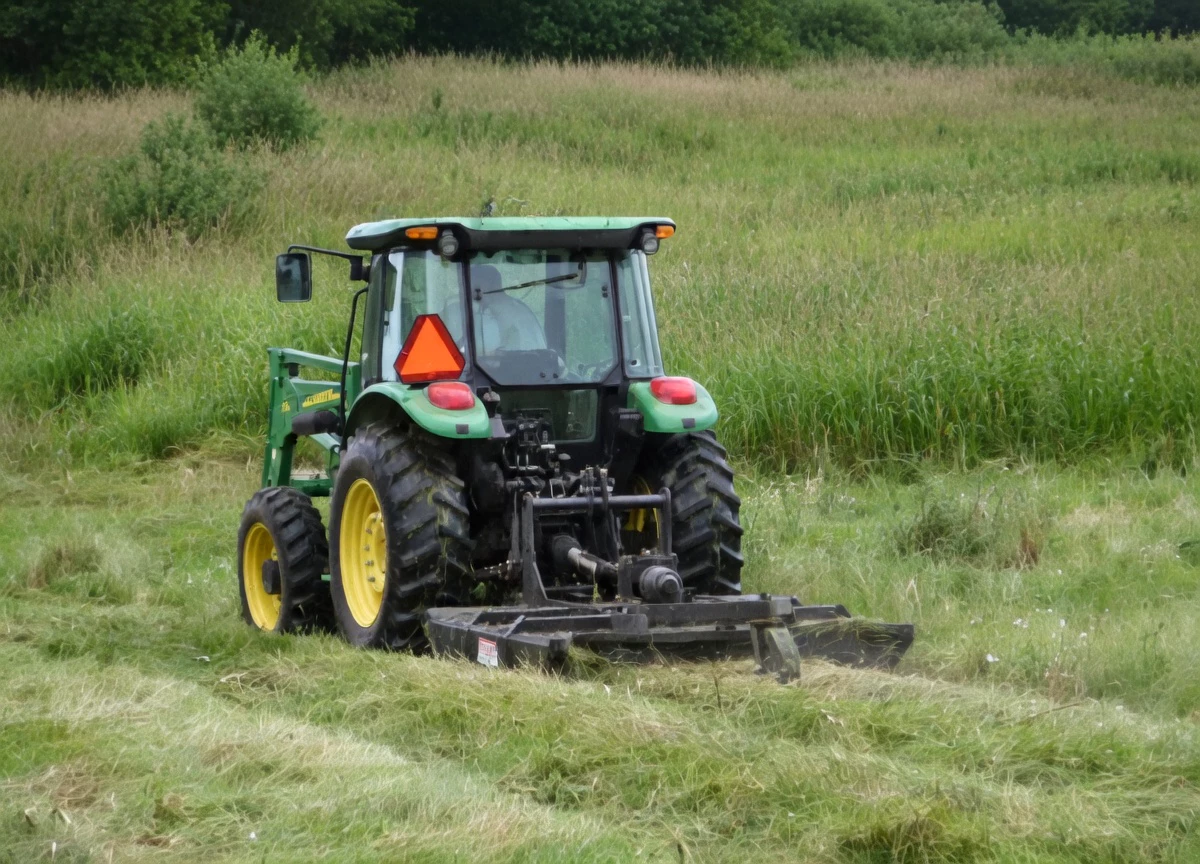

The PTO drive shaft sits between the rear of the tractor and the front of the implement — specifically, between the tractor’s PTO output stub (1 3/8″ 6-spline at 540 rpm or 1 3/8″ 21-spline / 1 3/4″ 20-spline at 1000 rpm) and the input shaft of the rotary mowers or other powered attachment. Power flows in one direction: tractor engine → tractor gearbox → PTO output → shaft → implement input → working tool.

Mechanically, the shaft has three zones, each doing a specific job:

• The two universal joints at each end allow the shaft to transmit torque around an angle. As the tractor turns and the implement articulates over uneven ground, each cross-and-bearing assembly compensates for that angular misalignment — but only up to about 25° per joint for a standard joint, or 35–45° for a wide-angle CV joint.
• The telescoping tubes in the middle let the shaft change in length. When the tractor crests a rise and the implement drops behind, the female outer tube and the male inner tube slide apart; when the tractor and implement come back into alignment, the tubes slide back together. The cold-drawn star, lemon or splined profile keeps the male and female tubes locked in rotational phase even as they slide.
• The safety device (shear-bolt, friction or ratchet clutch) sits at the implement end and is the last line of defence. When implement torque exceeds the clutch’s calibrated value — for example when a rotary tiller hits a buried root — the clutch slips, shears or releases, decoupling the implement from the tractor before the gearbox can be damaged.

The two-piece plastic shielding is mechanical, not symbolic. Each plastic cone is supported by a sealed bearing collar that runs on the rotating yoke; the cone itself stays still while the shaft spins inside it. A small chain anchors the guard to a fixed point on the tractor or implement so the guard cannot rotate even if the bearing collars wear. If the chain is missing, the entire safety system fails: the guard rotates with the shaft, and any loose clothing or limb that contacts it is wrapped at the operating RPM. Always confirm the chain is hooked before engaging PTO.

Brand Compatibility, Cross-Reference & Spare Parts

Many of our Australian customers are running a mixed fleet of European and North-American implements and need a single supplier that can cross-reference replacements to whichever brand they’re servicing on the day. Our PTO catalogue maps to the major manufacturers as follows:

All brand names and model numbers mentioned are for cross-reference and identification purposes only. We are not affiliated with these manufacturers, and the use of these names does not constitute trademark infringement.

Spare-Parts Library

For dealers and workshops that prefer to repair rather than replace, every component of this shaft is sold as an individual spare:

• Cross & bearing kit — drop-in repair item, typically the highest-turnover part in the workshop.
• Yoke (tractor or implement end) — drop-forged, machined, ready to install with new cross.
• Telescoping male / female tube section — sold by length and profile.
• Safety clutch — shear-bolt, friction or ratchet, sold complete with springs and friction discs.
• Plastic shielding cone — inner and outer cones, with bearing collars, fasteners and chain.
• Push-pin / quick-release lock — common wear item, supplied as a sealed assembly.
• Grease nipples and end-cap kits — bag-of-ten replacement packs.

Compliance, Standards & Local Australian Service

This star PTO shaft is engineered, tested and documented against the international and Australian standards relevant to PTO drivelines:

• ISO 5673-1 & 5673-2 — the international standard governing agricultural-machinery PTO drive shafts and their guards. Sets minimum dimensional, performance and shielding requirements.
• ASAE S331.5 / ISO 500 — defines the dimensional interface for the PTO output of agricultural tractors (1 3/8″-6, 1 3/8″-21, 1 3/4″-20 and 1 3/4″-6 splines).
• EN 12965 — European tractor-and-machinery PTO directive, including marking, documentation and operator-protection requirements.
• AS 2153 — Australian Standard for tractor safety, with specific guidance on PTO guarding and operator clearance.
• CE marking applied to every guard system; EAC marking available for Eurasian Customs Union shipments on request.
• ISO 9001:2015 quality-management certification across the manufacturing facility.
• RoHS compliance documentation supplied on request for OEM customers.

Australian WHS Compliance Notes

Australian farms are subject to the Work Health and Safety (WHS) regulations, which include specific obligations around plant guarding and operator training for PTO-driven machinery. Our PTO shafts ship with WHS-compliant guarding, multilingual safety decals and an operator-handbook PDF in English. State-level inspectorates regularly verify guard integrity during routine farm-safety audits — keep your purchase invoice and the QR-coded calibration tag with the implement to demonstrate compliance during an inspection.

We routinely supply PTO shaft Australia, Western Australia tractor parts, South Australia farm machinery parts, Tasmania agricultural supplies. Lead times to Brisbane, Sydney, Melbourne, Adelaide, Perth, Darwin and Hobart are 25–35 days door-to-door for FCL shipments and 35–45 days for LCL consolidations.

Selection Guide — How to Choose the Right PTO Shaft

Use the 10-step pre-purchase checklist below to confirm every dimension before placing an order. The wrong PTO shaft is unfortunately one of the most common return-and-replace items in the agricultural-driveline trade, and almost every wrong-fit case traces back to a missed step from this list.

3-Step Quick Selector — When You’re in a Hurry

1. Measure — closed length from PTO stub face to implement input shoulder, with the implement at minimum operating distance.
2. Match — spline pattern at both ends + yoke style (push pin / bolt pin / quick release).
3. Verify — power band of the tractor (HP @ 540 or 1000 rpm) and choose the safety device that matches the implement (shear-bolt for steady loads, friction for shock).

If any one of those three is uncertain, send us photos of your tractor PTO stub and the implement input shaft, with a tape measure visible. We will respond with a recommended SKU within one business day.

Step-by-Step Installation Guide

1. Pre-installation safety checks. Engine off; key out of ignition; parking brake on; PTO disengaged at the cab lever. Confirm there is no one between the tractor and implement before beginning.
2. Verify dimensions. With the implement at minimum operating distance, lay the new PTO shaft along the gap and confirm closed-length compression and spline-end matching. If the shaft is too long, do not force it — contact us for the correct length or for cut-to-fit instructions.
3. Connect the tractor end first. Press the push-pin (or release the bolt-pin / quick-release collar), align the spline, push the yoke onto the PTO stub until the lock engages with an audible click. Pull back firmly to confirm the lock has seated.
4. Connect the implement end. Repeat the same procedure on the implement input shaft. The two ends are not interchangeable — install the marked tractor-end yoke on the tractor, and the marked implement-end yoke on the implement.
5. Anchor both guard chains. The plastic guard cones each carry a small chain. Hook each chain to a fixed point — never to the rotating shaft itself. The chain must hold the guard stationary while the shaft rotates inside it.
6. Length verification. With the tractor and implement in their normal operating positions, confirm telescoping overlap is at least 1/3 of the male tube length. With the implement at maximum reach, confirm the tubes are not bottoming out (no metal-to-metal contact at minimum overlap).
7. Operating-angle check. Walk the implement through its full geometry (lift, lower, fold, turn). Each universal joint should not exceed 35° at any point under load — for sustained operation, keep angles under 25° per joint.
8. Initial lubrication. Apply 4–6 pumps of EP-2 lithium grease to each cross-and-bearing nipple, rotating the shaft 90° between pumps to fill all four needle bearings. Apply a thin film of grease to the male telescoping tube. Wipe excess.
9. Final pre-start check. All chains hooked? Both yoke locks engaged? Guards intact? Operator clear? Only then enter the cab, start the engine and engage PTO at idle RPM for the first 10 seconds before ramping up.

PTO Troubleshooting Guide — 10 Field-Tested Fixes

Common PTO issues, their root causes, the field fix, and the prevention step that stops them coming back.

Engineer Field Notes — Australian Customer Case Studies

Five real installations across Australia — different farm types, different climates, different demands on the driveline. Customer initials used to protect privacy.

Frequently Asked Questions

Three questions we hear most often from buyers — tap to expand.

Related Products from Our Catalogue

The PTO drive shaft is one piece of a larger driveline puzzle. We also manufacture the matching gearboxes, sprockets, chains, gears, pulleys and bearings that work with this shaft as a complete power-transmission system.

• Agricultural Gearbox — engineered to mate with this PTO shaft on rotary cutters, irrigation pumps and pickup-baler input drives.
• ⚙️ PTO Shaft Spare Parts — cross & bearing kits, replacement yokes, telescoping tubes, guard cones and friction-clutch service kits, all interchangeable with this shaft.
• Agricultural Sprockets — the matching driven-side sprockets for chain-driven implements that take their power off this shaft.
• Gears — bevel, helical and spur gears for in-line gearbox stages downstream of the PTO.
• ⛓️ Roller Chains — agricultural-grade roller chains for chain drives off this shaft.
• Pulleys — V-belt and timing pulleys for the auxiliary drives some implements take off the PTO.
• Bearings & Bushings — needle, taper, ball and bushed bearings used in the PTO ecosystem.

Why Order from Us — Manufacturing Capacity, Engineering Depth, Speed

Founded in 2003, our facility in Hangzhou now operates 22 CNC machining lines, four dedicated PTO assembly cells, two dynamic-balancing benches and a 4,000 m² warehouse. Annual capacity exceeds 280,000 PTO shafts and 60,000 agricultural gearboxes. Our products are exported to 38 countries — Australia, New Zealand, Germany, the United States, Brazil, Russia, South Africa and many others. The engineering team holds 11 utility-model patents and has supplied private-label drivelines to three top-10 European agricultural OEMs.

We do more than supply standard PTO shafts. Send us a worn shaft, a hand-traced drawing, or a few photos with measurements — we will engineer a replacement that fits your geometry exactly.
